Hidea 20F |
TOHATSU 18E2 |

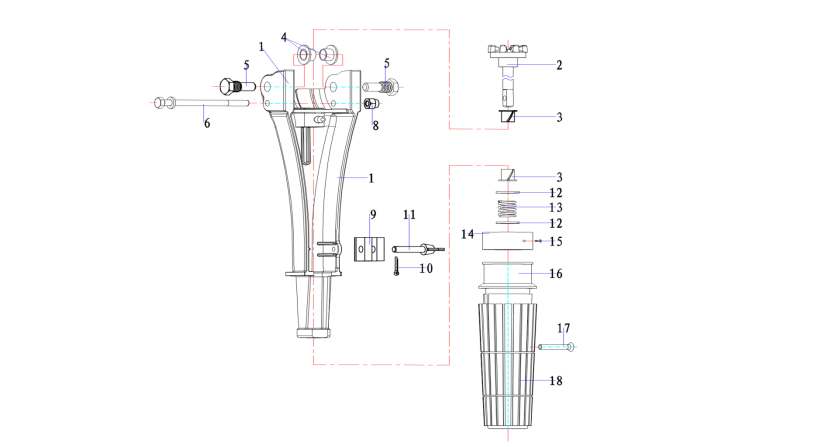

REF NO |
ITEM NO. |
PART CODE |
DESCRRIPTION |
PACKAGE |
CODE OF THS |
1 |
01012124 |
20F-04.00.00.01 |
Steering |
1PCS |
398S63011-0 |
2 |
01072128 |
20F-04.00.02.00 |
Throttle lever Assy |
1PCS |
398-63041-0 |
3 |
01070153 |
15F-04.07.12 |
Bushing |
5PCS |
350-63046-0 |
4 |
01072123 |
20F-04.00.00.03 |
Friction bushing |
1PCS |
|
5 |
01022112 |
20F-04.00.00.02 |
Hex handle shaft |
1PCS |
|
6 |
0104412 |
GB9074.1(8.8) |
Hexagon headed bolt and flat plate M6*75 |
5PCS |
|
7 |
|
|
|
|
|
8 |
0104304 |
GB/T923 |
Cap nut M6*0.5 (fine pitch) |
5PCS |
|
9 |
01072124 |
20F-04.00.00.04 |
Locking block |
1PCS |
|
10 |
01041850 |
GB/T91 |
Cotter pin 1.6*12 |
5PCS |
|
11 |
01022118 |
20F-04.00.00.05 |
Resistance adjustor |
1PCS |
|
12 |
0104160 |
GB/T848 |
Flat gasket |
5PCS |
|
13 |
01090124 |
15F-04.07.11 |
Spring |
1PCS |
|
14 |
01100366 |
F4-04.11-Ⅱ |
Throttle Indicator |
1PCS |
|
15 |
010408809 |
GB/T845 |
Cross recessed Pan head tapping screws ST2.2*4.5 |
5PCS |
|
16 |
01070154 |
15F-04.07.13 |
Handle |
1PCS |
|
17 |
0104117 |
GB/T820 |
Cross recessed slot countersunk head screw M5*25 |
5PCS |
|
18 |
01060124 |
15F-04.07.14 |
Handle rubber cover |
1PCS |
398-63012-0 |
|
|
|
|
|
结构差异大,不建议替代 |
